How to Clone Windows to SSD for Free

If your computer is running slowly and you’ve recently purchased an SSD, it’s best that you clone Windows to SSD instead of doing a fresh install.

A lot of people believe upgrading to an SSD requires reinstalling Windows, drivers and all software. That’s not true. You can clone Windows to SSD and transfer the whole operating system from one drive to another without losing your data on it like files, program, settings, drivers.

In this guide, I’ll cover the precise approach we use to clone Windows to SSD without losing any data. This technique applies to Windows 10 as well as Windows 11.

Step 1: Install or Connect Your New SSD

Before you clone Windows to SSD, you should ensure that the new SSD can be well connected to your computer.

If you’re using a desktop:

• Open the cabinet.
• Connect the SSD using a SATA cable and power cable.
• Secure it properly in the drive bay.

If you’re using a laptop:

• Use a USB to SATA adapter to connect the SSD externally,
  OR
• utilize available M.2 slots

After connecting:

• Turn on your computer.
• Right-click the Start button.
• Click Disk Management.

You should now see your new SSD listed there. If the SSD is visible here, you are ready to clone Windows to SSD.

Step 2: Download and Install Free Cloning Software

To clone Windows to SSD, you need reliable disk cloning software. For this guide, we’re turning to the free version of DiskGenius, a trustworthy cloning app that clones everything from the old drive onto the new one without costing you anything.

Compared with other free cloning tools, DiskGenius can provide not only advanced disk clone solution but also excellent partition management functions, which ensure your Windows SSD migration fast and safe. It manages both system and data partitions, so your cloned drive is ready to boot on the first try.

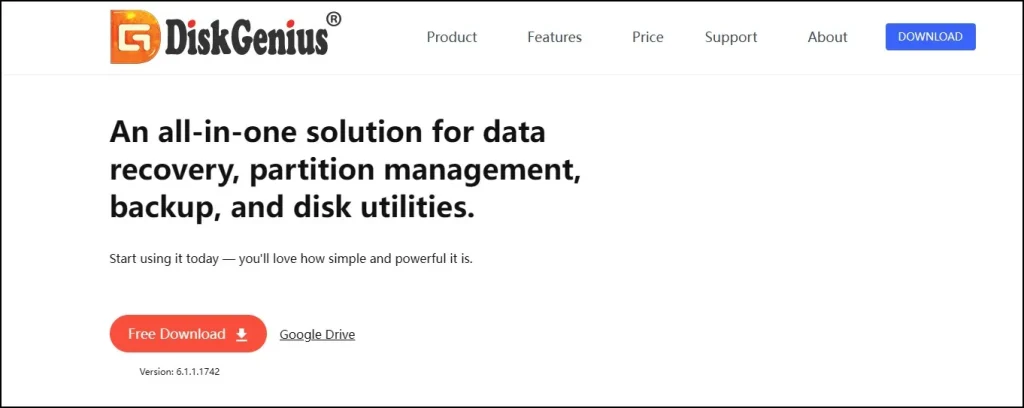

Download DiskGenius free version from the official website to access reliable disk cloning software free of charge.

After downloading:

• Right-click the setup file.
• Click Run as administrator.

• follow the setup wizard to complete installation

Once installed, open DiskGenius.You will now see all your drives listed inside the software.

Step 3: Configuring DiskGenius for Optimal Cloning Performance

After DiskGenius is running, you will see all drives connected to the computer showing in the main interface. The device/drive that has your Windows installed is known as source, it’s usually “C:/”. Find your freshly-plugged-in SSD in the list of drives (it will probably say it’s Unallocated, or maybe just have a single partition) Make a note of both drives’ sizes and their labels so that you do not mix them up when using the disk cloning software.

Step 4: Start the OS Migration Process

Now comes the most important part — starting the process to clone Windows to SSD. Inside DiskGenius:

• Click on OS Migration (top menu).

• Choose your current HDD (where Windows is installed) as the Source Disk.
• Select your new SSD as the Target Disk.
• Click SRART.

A warning message will appear saying that all data on the SSD will be erased. If your SSD is new or empty, click OK to continue.

At this stage, you are preparing the system to clone Windows to SSD without reinstalling anything.

Step 5: Choose Migration Mode and Start Cloning

After selecting the target SSD, you will see two options:

• Hot Migration
• Reboot to WinPE

Hot Migration allows you to clone Windows to SSD while your system is still running normally. This way you can work on your PC while the cloning is taking place. But still due to Windows, background programs and antivirus running, there might be a little risk of interruption or clone failures. This approach gets you up to speed quicker but isn’t always more secure.

Reboot to WinPE, on the other hand, is the recommended and safest method. This mode boots your computer to a special pre-boot environment in which no third-party programs are running. This will allow clean and stable cloning without any disturbance. Because of this, most technicians and repair professionals always prefer the Reboot to WinPE option.

For best results and maximum reliability, it is strongly recommended to select Reboot to WinPE when you clone Windows to SSD.

Finally Click Start. Your computer will now restart automatically and enter a special environment where it begins the cloning process.

You’ll see a progress bar showing the transfer status. The time required depends on the Size of your old HDD, amount of data stored and also Speed of your drives. Usually, it takes anywhere between 10 to 40 minutes.

Once cloning is complete, your system will restart automatically.At this point, you have successfully clone Windows to SSD.

Step 6: Set SSD as the Boot Drive

When you’ve successfully migrated your Windows SSD, shut down your computer completely before physically removing or adding any hardware components. Gently remove your existing drive, disconnect the SATA data cable and power connector. This is to prevent possible boot conflicts between the original and new drive. Turn on your computer and make sure that it boots to Windows from your cloned SSD without any problem.

Then you need to configure the primary boot drive as the SSD. Restart your computer. When you power on the PC press Delete, F2, F10 or F12 (Check your Motherboard’s manual) to enter in BIOS.

Inside BIOS:

• Go to Boot Settings.
• Find Boot Priority.
• Select your SSD as Boot Option 1.
• Save and Exit.

Your computer will reboot and boot directly to the SSD. Assuming everything is completed successfully, Windows should load as normal — but a lot faster.

Once you’ve booted from your SSD successfully, ensure that all of your applications open without error and your personal files are intact. Open the programs you use often to make sure that none of them crash, and check for the desktop settings, browser bookmarks and user profiles in everything. Run a check disk of your new SSD drive to make sure that the cloning Windows to SSD went well without file system errors or corrupted files.

Final Thoughts

Shifting to SSD is one of the best performances upgrades you can make. Well, when you clone Windows to SSD, not only it saves your time, it also saves you from reinstalling all the software and maintaining everything as per your preferences. It’s safe, it’s beginner-friendly, and best of all… it’s totally free! If Windows is running slowly and you’re preparing for an SSD upgrade, it’s the simplest and smartest method of transferring your files from old storage to new.
